20 cm Accuracy Satellite for Oil & Gas

Petroleum engineers are using our satellite surveys for:

Experience PhotoSat has completed over 900 international topographic mapping projects since 2004:

Over 900 Highly Accurate Satellite Topographic Mapping Projects

Over 900 Highly Accurate Satellite Topographic Mapping Projects

Highest accuracy

PhotoSat produces the world’s most accurate 1m bare earth elevation grids (DTM) with 50cm contours from satellite photos. Using our unique geophysical satellite data processing system, we produce topographic surveys with 4 times the elevation accuracy of conventional satellite elevation mapping. Our accuracies have been proven using tens of thousands of ground survey points for comparison. View our Proof of Accuracy Reports.

To achieve 20cm accuracy PhotoSat uses a unique technology and set of algorithms that were derived from oil and gas seismic processing. Find out more about our data processing methods on the Technology page.

PhotoSat satellite mapping benefits:

  • Engineering quality satellite surveys available globally.
  • Cost-effective alternative to surveying, LiDAR, and photogrammetry.
  • Simplifies the surveying process: no in-country presence or permits.
  • Minimizes the exposure of field crews when accessing hazardous or remote areas.
  • Custom formats and projections.

Satellite surveying pricing

Our satellite survey package is produced on a project-by-project basis. Please send us the extents of your project area and we will prepare a quote.

Surveying Package includes:

  • 1m bare earth digital elevation grid (DEM), accurate to better than 20cm
  • 50cm or 1m contours
  • 50cm satellite ortho photo
  • 1m colour elevation image
  • 1m slope direction (aspect) image

For more information contact us at info@photosat.ca or 1-604-681-9770.

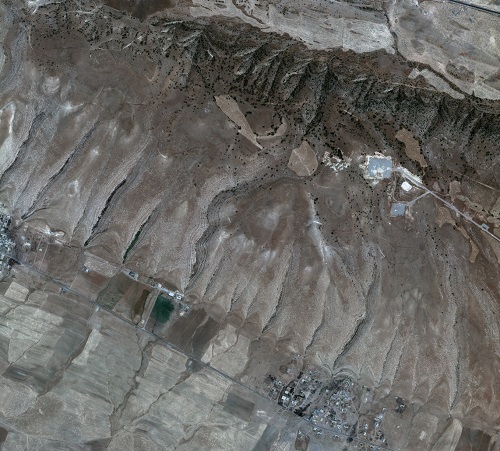

50 cm satellite ortho photo

50cm satellite ortho photo. © DigitalGlobe 2014

1m colour elevation image

1m colour elevation image

slope direction image

1m slope direction image

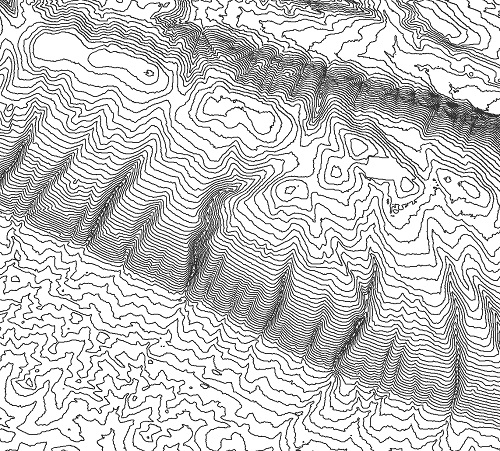

50 cm contours

50cm contours

PhotoSat's 50cm contours and 50cm Pleiades satellite photo over the same area. Image copyright Airbus. Image 1 of 6

PhotoSat’s 50cm contours and 50cm Pleiades satellite photo over the same area. ©Airbus DS 2014.
Image 1 of 6

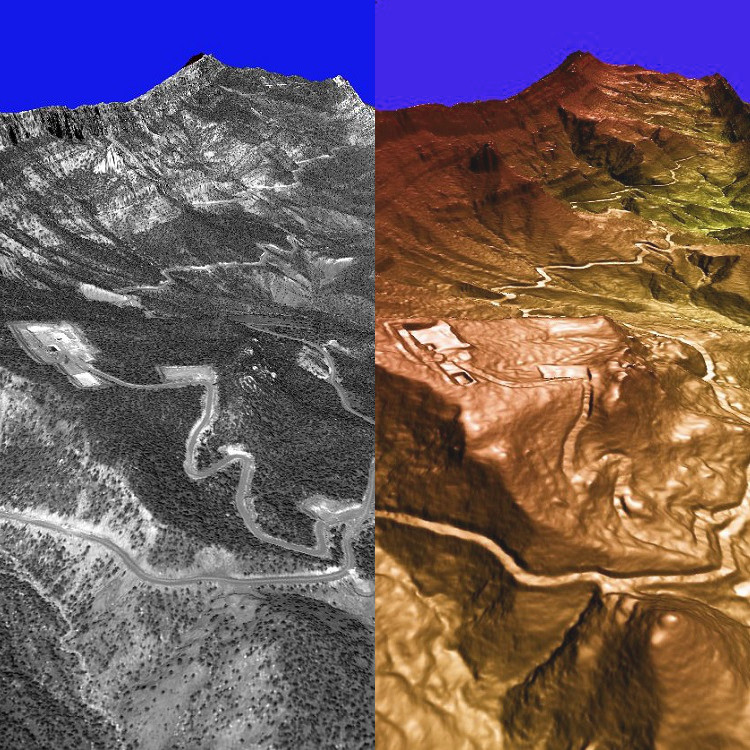

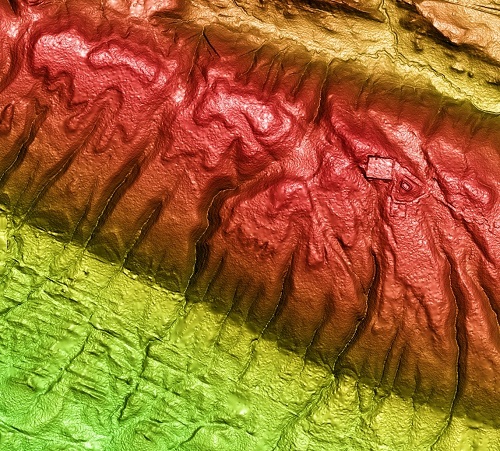

PhotoSat's 1m elevation image and 50cm Pleiades satellite photo over the same area. Image copyright Airbus. Image 2 of 6

PhotoSat’s 1m elevation image and 50cm Pleiades satellite photo over the same area. ©Airbus DS 2014.
Image 2 of 6

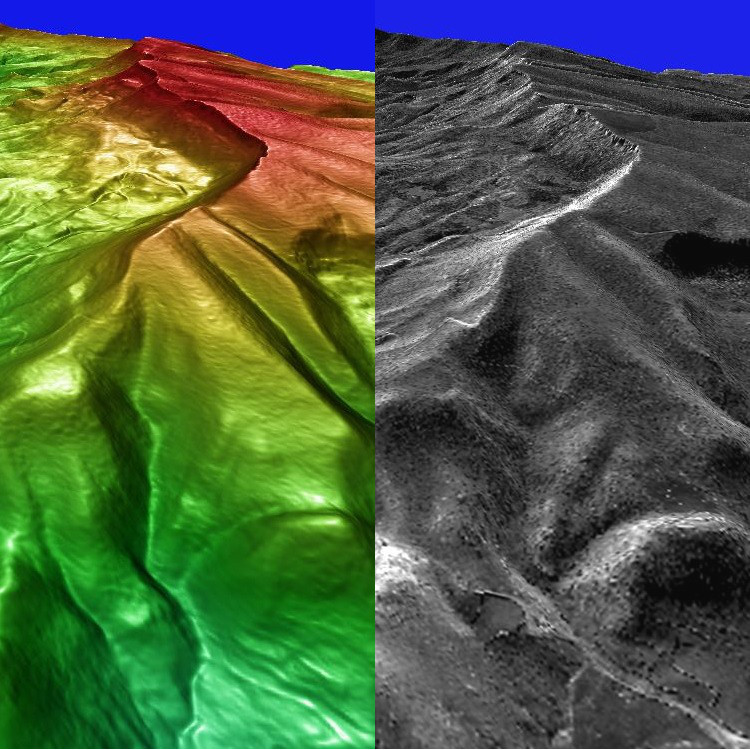

50cm Pleiades satellite photo and PhotoSat's 1m elevation image over the same area. Image copyright Airbus. Image 3 of 6

50cm Pleiades satellite photo and PhotoSat’s 1m elevation image over the same area. ©Airbus DS 2014.
Image 3 of 6

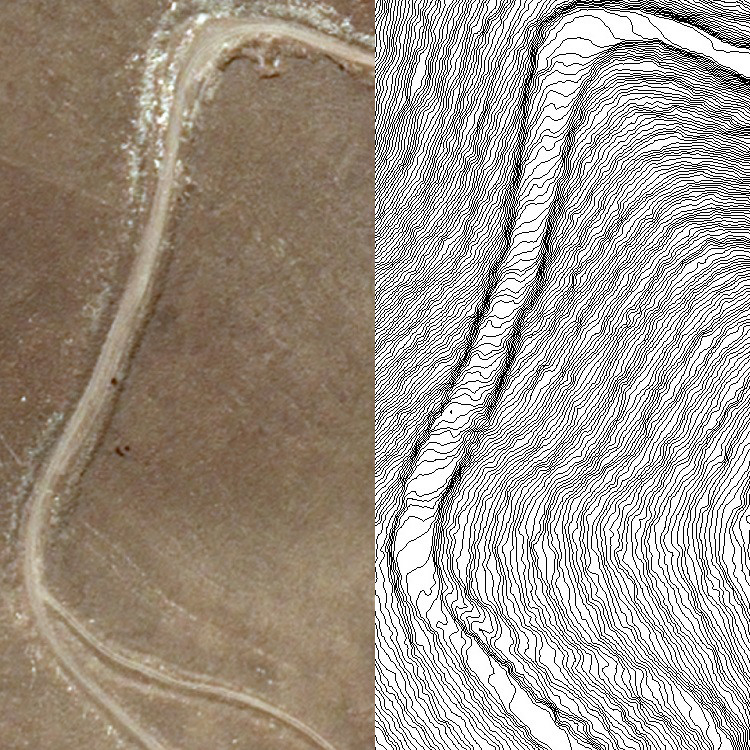

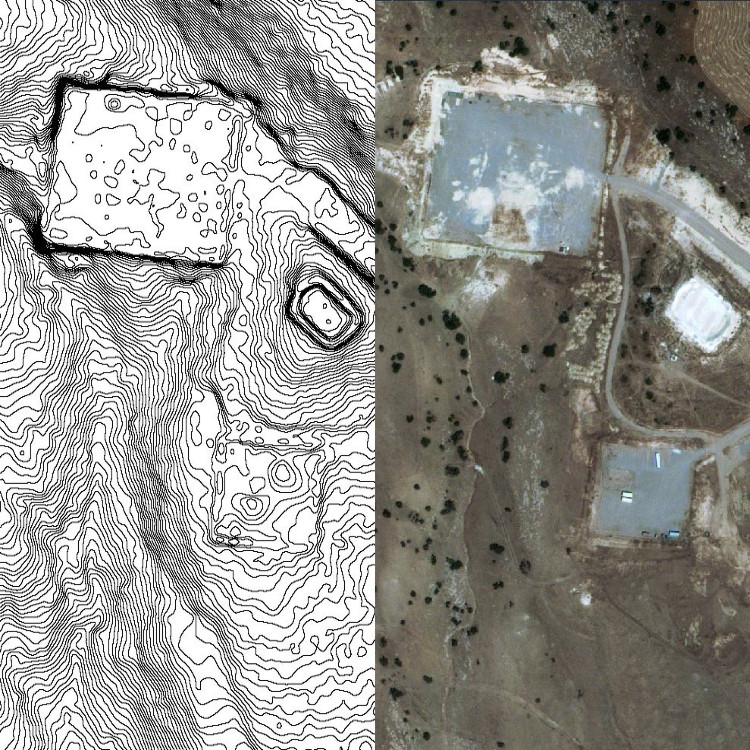

50cm Pleiades satellite photo and PhotoSat's 50cm contours over the same area. Image copyright Airbus. Image 4 of 6

50cm Pleiades satellite photo and PhotoSat’s 50cm contours over the same area. ©Airbus DS 2014.
Image 4 of 6

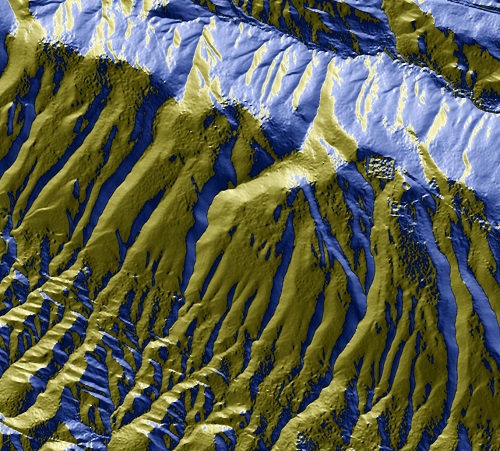

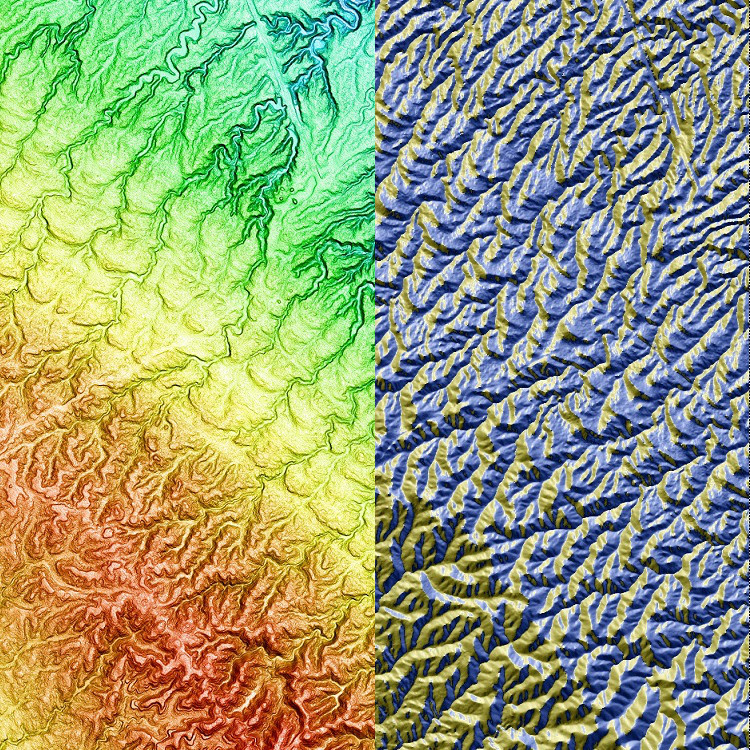

PhotoSat's 1m elevation image and 1m slope direction image over the same area. Image 5 of 6

PhotoSat’s 1m elevation image and 1m slope direction image over the same area.
Image 5 of 6

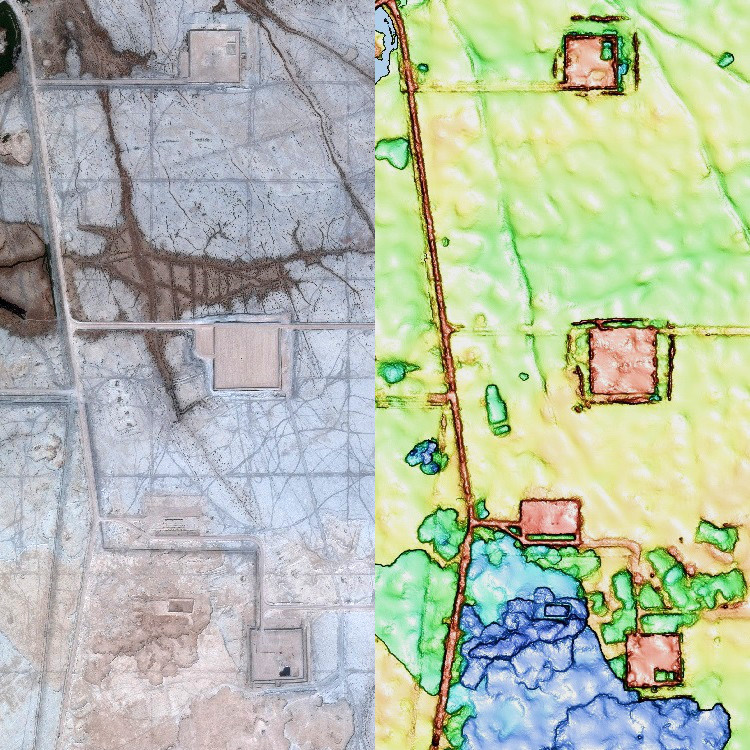

50cm Pleiades satellite photo and PhotoSat's 1m elevation image over the same area. Image copyright Airbus. Image 6 of 6

50cm Pleiades satellite photo and PhotoSat’s 1m elevation image over the same area. ©Airbus DS 2014.
Image 6 of 6

Deliverables

  • 50cm precision colour satellite ortho photo
  • 20cm accuracy 1m bare earth elevation grid (DEM/DTM)
  • 50cm or 1m contours (plus 5m, 10m and 50m contours)
  • Colour elevation image (in areas of sparse vegetation)
  • Direction of slope image (in areas of sparse vegetation)

Available Formats

  • Contours: 3D ArcGIS Shapefile or 2D MapInfo or 3D DWG
  • Elevation grid: Floating Point GeoTIFF or .MIG (MapInfo compatible) or ASCII XYZ
  • Colour Image: GeoTIFF

Additional formats are available; please let us know which format you require.

License Agreement

  • DigitalGlobe License Agreement or Airbus: Pleiades End-User License Agreement
  • PhotoSat General Terms of Sale

Accuracy & Ground Control

PhotoSat’s elevation grids have been demonstrated to have a relative vertical accuracy of 30cm RMSE, and a relative horizontal accuracy of 50cm RMSE over horizontal distances of 10km.

To achieve 30cm RMSE absolute accuracy, a minimum of three surveyed ground control points accurate to better than 10cm are required for areas up to 200km². For larger projects, we request one ground control point every additional 200km². In the absence of ground control points the relative accuracy specifications apply and absolute accuracy is expected to be better than 3m RMSE.

Water

  • Hydro dams
  • Hydrographic mapping
  • Direction of slope analysis
  • Drainage analysis
  • Flood plain analysis and modeling
  • Wetland management

Land Development

  • Landslide risk assessment
  • Line of sight analysis
  • Cut and fill calculations and construction

Transportation and Utility Corridors

  • Power line planning and construction
  • Railway planning and construction
  • Right-of-way planning
  • Road and highway planning and construction
  • Transmission line planning and construction
  • Transportation corridor design

Alternate Energy

  • Wind farm planning and management

Mapping and GIS

  • DSM (digital surface models)
  • DEM (digital elevation models)
  • DTM (digital terrain models)
