15cm Accuracy Topography for Oil Sands

PhotoSat’s 15cm accuracy satellite topographic data enhances traditional ground surveying and reduces field crew costs in all phases of oil sands mining.

We survey all 7 of the Alberta oil sands mines, some on a bi-weekly or monthly basis. Mining and tailings engineers are using our satellite surveys for:

  • Highly accurate mapping of sand dumps.
  • Mapping and monitoring tailings beaches and dykes, eliminating ground survey crew exposure to hazards and reducing water usage. Accurate measuring of the clay thickness in mature fine tailings cells in 15cm intervals.
  • Improving volume calculations in pits, waste dumps, and stockpiles.
  • Mine site toes and crests data for daily dispatch maps and other processes.
  • High accuracy volume measurement of windrows.

Experience

PhotoSat has completed over 900 satellite mapping projects globally since 2004:

450_hd_elevation_projects_2014feb

Highest accuracy elevation data

PhotoSat produces highly accurate 1m elevation grids (DEMs) with 50cm or 1m contours from satellite photos using our geophysical processing technology. We have invented a process that produces detailed surface topography from stereo satellite photos with 4 times the accuracy of conventional satellite mapping. Our accuracies have been proven and reports are available on the Satellite surveying accuracy studies page.

We achieve 15cm elevation accuracy in oil sands mines using a proprietary set of algorithms that were derived from oil and gas seismic processing. Find out more about our unique process on the Technology page.

PhotoSat satellite surveying benefits:

  • Engineering accuracy for oil sands engineering projects.
  • Improves safety for field crews in hazardous areas.
  • Fast delivery: usually within 8 days of satellite data acquisition.
  • Cost-effective alternative to GPS surveying and aerial LiDAR.
  • Custom formats and projections.

Satellite topography pricing

The digital topographic data package is provided on a project-by-project basis. Please provide us with the extents of your project area and we will get back to you with a quote.

Package Includes:

  • 1m bare earth digital elevation grid (DEM)
  • 50cm or 1m contours
  • 50cm satellite ortho photo
  • 1m colour elevation image

For more information contact us at info@photosat.ca or 1-604-681-9770.

50cm satellite ortho photo

50cm resolution satellite ortho photo

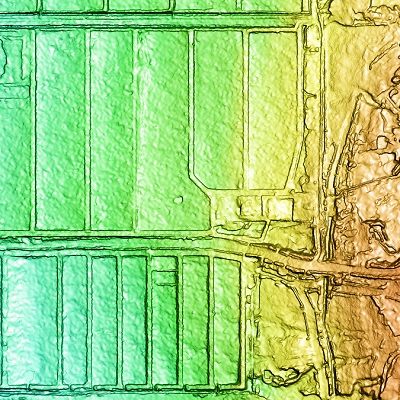

1m PhotoSat elevation image

1m PhotoSat elevation image (accurate to better than 15cm in elevation)

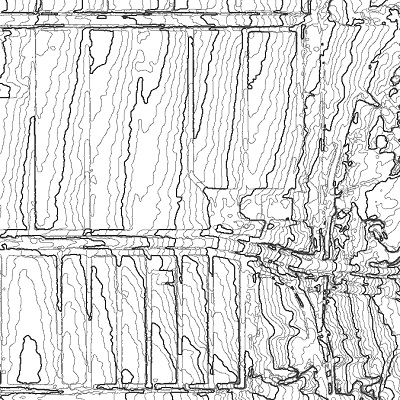

1m contours

1m contours (accurate to better than 15cm in elevation)

PhotoSat's 15cm accuracy elevation grid and 1m contours. Image 1 of 5

PhotoSat’s 15cm accuracy elevation grid and 1m contours.
Image 1 of 5















PhotoSat's 15cm accuracy 1m topographic grid image over an oil sands mine site. Image 2 of 5

PhotoSat’s 15cm accuracy 1m topographic grid image over an oil sands mine site.
Image 2 of 5

















Topographi oil sands CSH with contours

PhotoSat’s 15cm accuracy elevation image with 1m contours.
Image 3 of 5

















Oil sands windrows satellite image

50cm WorldView-2 satellite photo and PhotoSat’s 15cm accuracy elevation image of windrows. Image copyright DigitalGlobe.
Image 4 of 5



















 50cm WorldView-2 satellite photo and PhotoSat's 15cm accuracy topographic image. Image copyright DigitalGlobe. Image 5 of 5


50cm WorldView-2 satellite photo and PhotoSat’s 15cm accuracy topographic image. Image copyright DigitalGlobe.
Image 5 of 5

Deliverables

  • 50cm precision colour satellite ortho photo
  • 15cm accuracy 1m bare earth elevation grid (DEM/DTM)
  • 50cm or 1m contours (plus 5m, 10m and 50m contours)
  • Colour elevation image

Available Formats

  • Contours: 3D ArcGIS Shapefile or 2D MapInfo or 3D DWG
  • Elevation grid: Floating Point GeoTIFF or .MIG (MapInfo compatible) or ASCII XYZ
  • Colour Image: GeoTIFF

Additional formats are available; please let us know which format you require.

License Agreement

  • DigitalGlobe License Agreement or Airbus – Pleiades End-User License Agreement
  • PhotoSat General Terms of Sale

Accuracy & Ground Control

Our elevation grids over oil sands mine sites have a relative vertical accuracy of 15cm RMSE, and a relative horizontal accuracy of 30cm RMSE.

Ground control requirements will be provided by PhotoSat when requesting a quote.
