Surveying for Mining & Development

Mine Site Surveying

User-ready data for mine and tailings management
Open pit mines and tailings facilities are in a constant state of change. Engineers have a continual need for accurate elevation survey data to manage these dynamic sites safely and responsibly.

PhotoSat’s Mine Site Surveying ensures engineers get reliable, robust, and time-stamped survey data for the entire active area, without the need for site access.
Precision Orthophoto

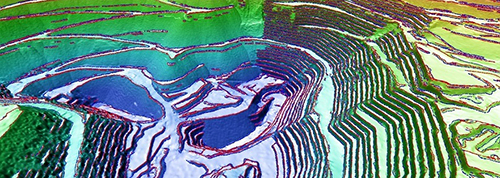

Colour Shade
Precision Orthophoto

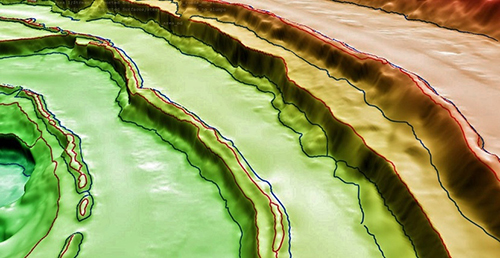

Colour Shade
Key applications:
  • Mine site operations
  • Volume reconciliation and reporting
  • Short-, mid-, and long-range planning
  • Tailings facility management
Elevation grid formats:
File Format(s): ASCII, CSV, DWG, DXF, ECW, ERS, LAS, TIF, and XML.

Thinned Grid formats are available to reduce file size for projects over low-grade slopes.
Technical Specifications:
Type
Bare ground surface (DEM/DTM)
Vertical Accuracy (with control)
~10 – 15 cm RMSE More Info
Satellite Specifications for Elevation Surveys
Some specifications for survey deliverables depend on the satellite used to acquire the imagery.
Satellite Expected Vertical Accuracy Orthophoto Ground Resolution (Pixel Size) Orthophoto Colour Elevation Grid Spacing (Ground Sample Distance)
WV1 10 – 15 cm RMSE (with ground control) 50 cm Greyscale, with colourization options available 1 m or 50 cm
WV2 10 – 15 cm RMSE (with ground control) 50 cm Colour 1 m or 50 cm
WV3 10 – 15 cm RMSE (with ground control) 50 cm or 30 cm Colour 1 m, 50 cm, 30 cm, or 15 cm (resampled)
Pleiades 1A 20 – 30 cm RMSE (with ground control) 50 cm Colour 50 cm
Pleiades 1B 20 – 30 cm RMSE (with ground control) 50 cm Colour 50 cm
Keyhole -- 0.61 m to 1.2 m Greyscale 0.61 m to 1.2 m
Relative Accuracy
~20 cm over 5 km
Elevation Grid Resolution (GSD)
50 cm, 1 m, or custom
Vegetation Removal
Yes
Available from Archive Imagery
Yes
Satellites Source(s)
WV1, WV2, WV3, Pleiades Neo
Delivery Schedule
Monthly; quarterly; bi-annually; annually
Area of Interest
Custom
Coordinate System
Any, including custom mine grids

Deliverables

The Mine Site Surveying package includes these standard deliverables.
Standard Deliverables Optional Deliverables

Accuracy Study

How accurate is a survey produced from WorldView-3 satellite imagery?

Our technical team is ready to work with you
