WorldView-3, Eritrea , 2 GCP, 19cm RMSE, August 2016
PhotoSat WorldView-3 stereo satellite surveying accuracy study, Asmara, Eritrea
- 198 km2 surveyed using only two ground reference survey points
- October 2014 WorldView-3 stereo satellite photos processed by PhotoSat in July 2016
- This WorldView-3 satellite elevation surveying accuracy is accurate to 19cm RMSE determined by 2,273 survey checkpointsDownload the white paper of the detailed report (will require login or registration)Summary report below:
A 1m elevation grid covering an area of 198 square kilometres, was produced over the PhotoSat test area in Eritrea. The elevation grid was made using geophysical processing of 50cm ground resolution stereo satellite photos taken by the DigitalGlobe WorldView-3 satellite. The stereo satellite elevation processing was referenced two ground survey points. The elevation surveying accuracy was measured with over 2,000 survey checkpoints.
Download the white paper of the detailed report (will require login or registration)
Summary report below:
Eritrea satellite photos:
The pair of stereo WorldView-3 satellite photos over the Eritrea test area were taken on October 30, 2014 at approximately 10:30 AM local time.
Eritrea elevation grid:

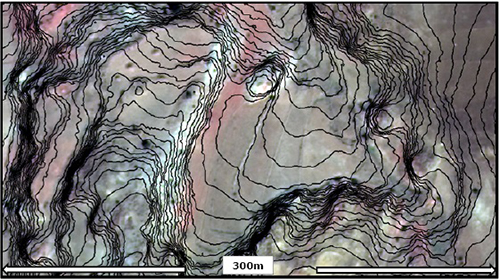

PhotoSat produced a 1m grid of elevations over a 198km2. We processed the stereo WorldView photos with our geophysical stereo satellite processing system in July, 2016. An image of the 1m elevation grid is shown below.
Ground reference points:
With this accuracy study we are demonstrating that PhotoSat can produce highly accurate WorldView-3 surveys with only two ground reference points. Having as few as two ground reference points for a 198 km2 satellite surveying project is not uncommon in mining exploration projects.

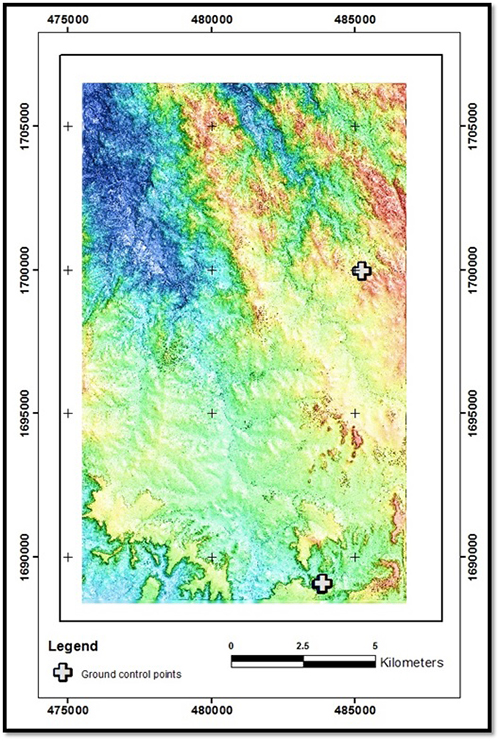

The locations of the ground reference points are shown on the elevation image below. The northern point was a photo recognizable point. The southern ground reference point was determined by fitting the satellite elevation grid to a dense set of ground survey points around a topographic high. This fit was within 25 cm horizontal and 5 cm vertical.
Accuracy evaluation check points:

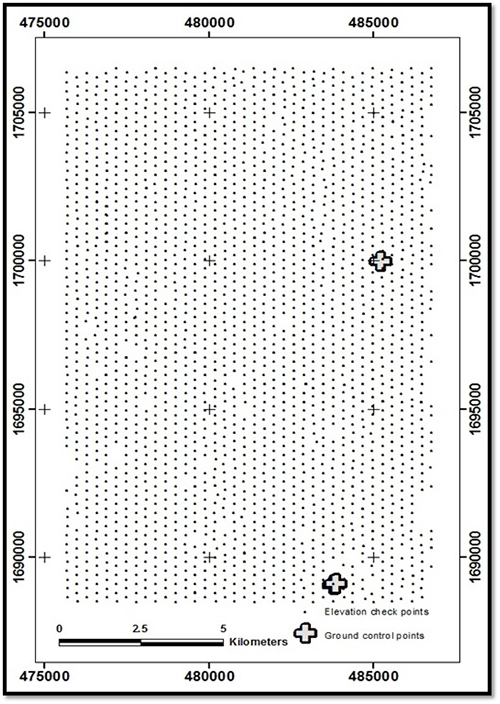

The accuracy of the PhotoSat 1m survey grid was evaluated with 2,273 ground survey check points. These points were originally surveyed for a large mining exploration gravity survey conducted between 2004 and 2008 by MWH Geophysics. The distribution of the elevation check points is shown in the check points figure.
The elevation check points were surveyed to an accuracy of 2 cm using Real Time Kinematic GPS survey equipment. One of the MWH Geophysics survey teams and their equipment are shown below. The accuracy check points consist of a 250 m by 250 m regional grid of points.
Elevation survey accuracy statistics:

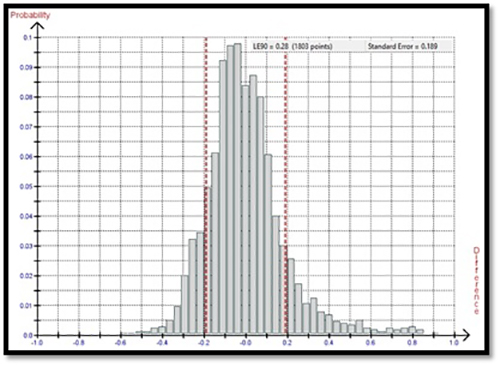

The Guidelines for Digital Elevation Data of the US National Digital Elevation Program (NDEP) recommends that elevation checkpoints should be chosen in areas with slopes less than 20% grade. The 1,803 elevation checkpoints with slopes less than 20% grade have a Root Mean Square Error (RMSE) of 19cm.
